Tessera 24. Tethys mosaic, Marroquíes Altos (Jaén, Spain)

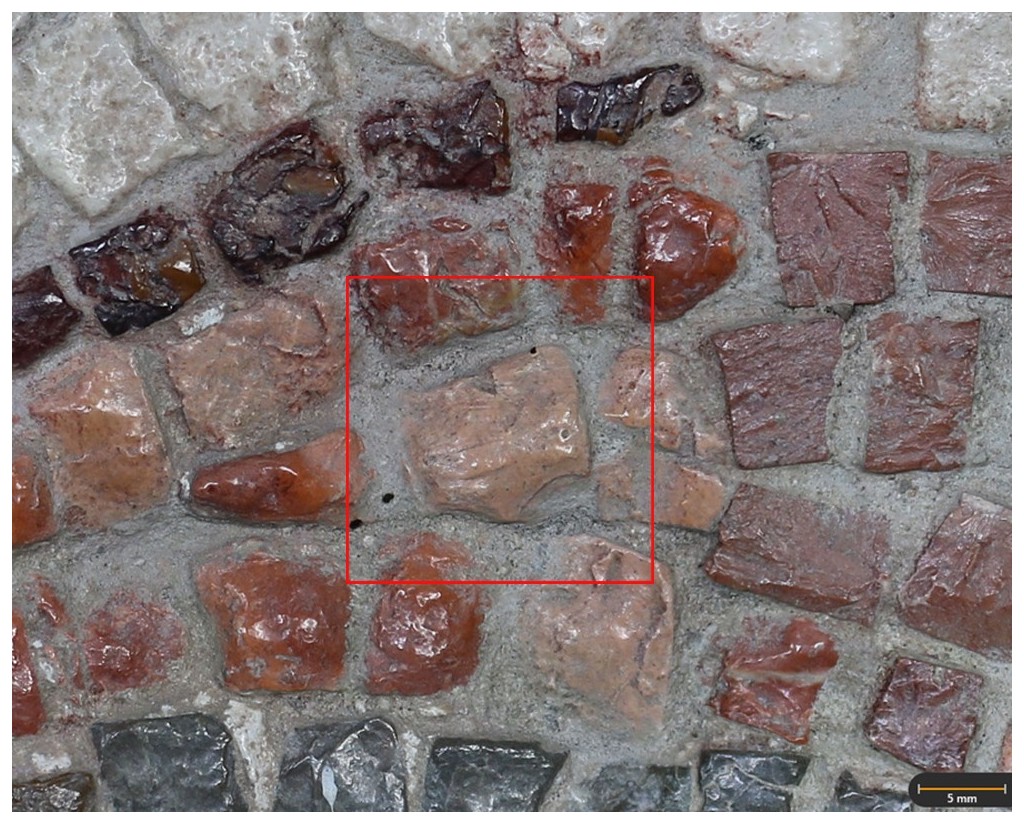

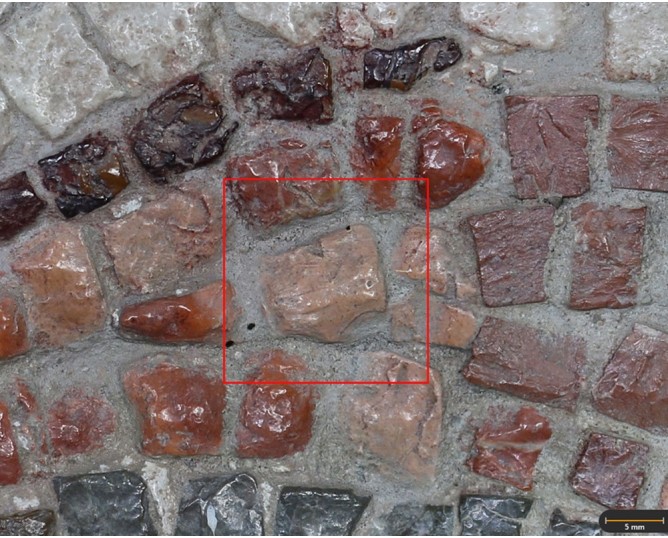

Salmon-colored tessera belonging to the Tethys mosaic from the Marroquíes Altos Archaeological Site (Jaén, Spain). Raman analysis indicates the presence of calcite (CaCO3), and X-ray fluorescence shows a high Ca content; therefore, the raw material used in its manufacture was limestone.
Leer más Leer menos

New product

Dimensions

: 1 Centimeters

: 1 Centimeters

Materials

Stone

Temporal

: Roman

: 4th century AD

Otros metadatos

Spatial

  • : Marroquíes Altos. Tethys Mosaic
  • : Jaén, Spain
  • : WGS84


Copyrights

Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)

References

Blázquez, J.M. (1981): Mosaicos romanos de Córdoba, Jaén y Málaga. Madrid. Consejo Superior de Investigaciones Científicas.

Sánchez, A., Montejo, M., Tuñón, J. et al. (2026): Integrated portable spectroscopy for the analysis of Roman mosaics from Marroquíes Altos, Jaén, Spain. npj Heritage Science, 14, 55

Ortofoto del mosaico de Tetis

Digital Resources

  • Tessera 24
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • Tessera 24 on the ketos body
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • Tethys mosaic
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • Tessera 24. Raman analysis IUIAI-UJA
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • IUIAI-UJA
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • IUIAI-UJA
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]

Activities

  • Archaeometric analysis

University Research Center for Iberian Archaeology

Raman Microscopy

Mineralogical analysis

Non destructive. Surface cleaning. Sample pretreatment is not required. Direct measurement.

Portable Raman spectrometer (model BWS445-785S innoRam) equipped with a CCD detector, a handheld fiber-optic probe, an automated MicroBeam tripod, a benchtop stand for small samples, and a BAC151A camera (University Research Institute for Iberian Archaeology, University of Jaén). A 785 nm diode laser (300 mW) was used, with a spectral resolution better than 4.5 cm-1

X-Ray Fluorescence

Elemental analysis

Non destructive. Surface cleaning. Sample pretreatment is not required. Direct measurement.

Portable Olympus Innov-X Delta Premium X-ray fluorescence spectrometer equipped with a rhodium (Rh) anode X-ray tube and a 20 mm2 SDD detector. An aluminum (Al) filter was applied to measure high-Z elements (from Fe onward) using a voltage of 40 kV and a current of 38.7 µA. Without filtering (low-Z elements), a voltage of 10 kV and a current of 50.8 µA can be applied. Measurements were performed in air for 150 s. The X-ray excitation beam was collimated through a window with dimensions of 3×3 mm2
