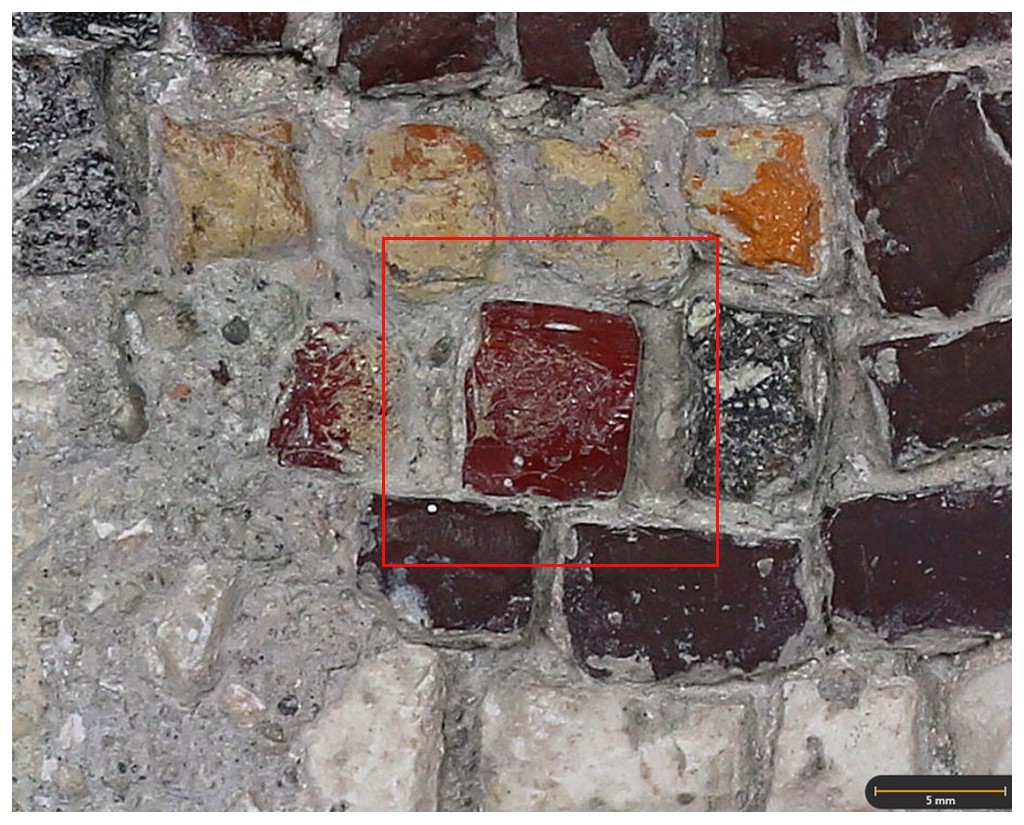

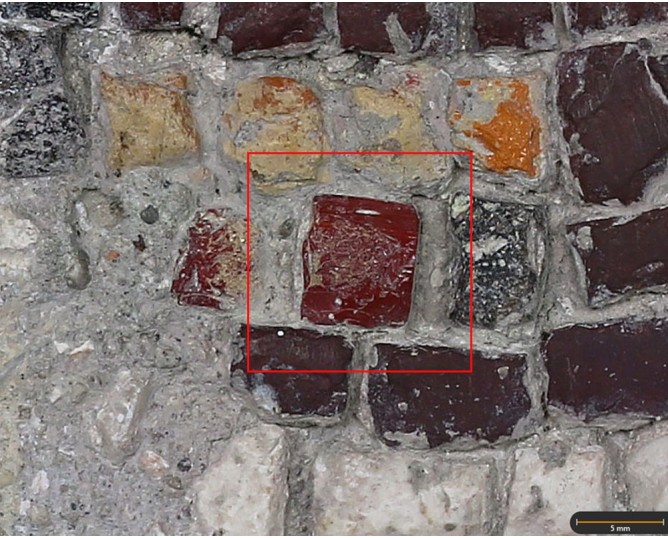

Tessera 110. Mosaico de los Erotes, Marroquíes Altos (Jaén, Spain)

Red tessera from the Erotes mosaic of Marroquíes Altos (Jaén, Spain). It is made of glass. XRF analysis shows Cu as the primary chromophore, precipitating either as metallic Cu⁰ nanoparticles or as Cu₂O crystals. This process appears to have been catalysed by the presence of elements such as Pb and Fe within the silicate matrix
Leer más Leer menos

New product

Dimensions

: 1.2 Centimeters

: 1 Centimeters

Materials

glass paste

Temporal

: Roman

: 2nd-4th century AD

Otros metadatos

Spatial

  • : Marroquíes Altos, Erores Mosaic
  • : Jaén, Spain
  • : WGS84


Copyrights

Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)

References

Blázquez, J.M. (1981): Mosaicos romanos de Córdoba, Jaén y Málaga. Madrid. Consejo Superior de Investigaciones Científicas.

Sánchez, A., Montejo, M., Tuñón, J. et al. (2026): Integrated portable spectroscopy for the analysis of Roman mosaics from Marroquíes Altos, Jaén, Spain. npj Heritage Science, 14, 55

Ortofoto del mosaico de los Erores

Digital Resources

  • Tessera 110
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • Tessera 110 in the boat
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • Erotes mosaic
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • IUIAI-UJA
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]
  • IUIAI-UJA
    Creative Commons - Attribution, Non-Commercial, No Derivatives (BY-NC-ND)
    Arquiberlab
    http://creativecommons.org/licenses/by-nc-nd/3.0/
    [ver más...] [ver menos]

Activities

  • Archaeometric analysis
  • Physical-chemical analysis
  • Tessera. Composition analysis

University Research Center for Iberian Archaeology

X-Ray Fluorescence

Elemental analysis

Non destructive. Surface cleaning. Sample pretreatment is not required. Direct measurement.

Portable Olympus Innov-X Delta Premium X-ray fluorescence spectrometer equipped with a rhodium (Rh) anode X-ray tube and a 20 mm2 SDD detector. An aluminum (Al) filter was applied to measure high-Z elements (from Fe onward) using a voltage of 40 kV and a current of 38.7 µA. Without filtering (low-Z elements), a voltage of 10 kV and a current of 50.8 µA can be applied. Measurements were performed in air for 150 s. The X-ray excitation beam was collimated through a window with dimensions of 3×3 mm2
